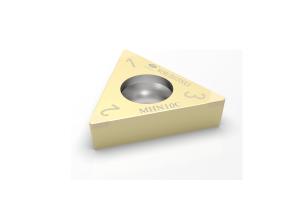

TCGW10308 Coated PCBN Carbide Turning Insert PCBN Cutting Insert for hardened steel
In the manufacturing worldia, changing push us to promote our product and service.
We pay special attention to the making of Standard Super Hard Cutting Tools.
And we have made a tremendous amount of technical innovations in the design and
manufacturing of PCBN/PCD/CVD inserts and related products.
Material:
Poly-Crystalline Diamond (PCD)
1. Reduce your tooling cost significantly
2. For non-ferrous metal machining
Polycrystalline cubic boron nitride(CBN)
1. with an excellent hot hardness
2. Good toughness and thermal shock resistance.
3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
mainly promoting PCD / PCBN standard inserts.
Main products:
PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.
Especially coated PCBN insert is suitable for continuous to the heavy interrupted cutting of hardened steel
and has excellent universal performance.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-mental materials.
In particular, the PCD chip-breaker insert is mainly used to solve the problem of chip wrapping during processing,
and it has excellent performance!
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MHN10C | Applied to continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to heavy interrupted cutting of hardened steel |
| MKN10 | Applied to cutting of gray cast iron |
| MKN20 | Applied to cutting of ductile iron |
| MSN10 | Applied to cutting of powder metallurgy |
| MSN20 | Applied to cutting of powder metallurgy |
Specification:
| Material | ISO H | ISO K | ISO S |
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy |
| Vc | 180(150~250)
m/min | 100(50~150)
m/min | 80(30~120)
m/min | 600(300~800)
m/min | 300(150~450)
m/min | 300(200~500)
m/min | 500(300~800)
m/min |
| fn | 0.1(0.03~0.2)
mm/r | 0.1(0.03~0.2)
mm/r | 0.1(0.03~0.2)
mm/r | 0.1(0.03~0.3)
mm/r | 0.1(0.03~0.3)
mm/r | 0.1(0.03~0.3)
mm/r | 0.1(0.03~0.3)
mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| TCGW | Shape | Dimensions |
| ANSI Code | ISO Code | Tips | IC
mm | S
mm | R
mm | Φd
mm | LE
mm |
All
Stocked | TCGW 1.81.51 | TCGW 090202 | 3N | 5.56 | 2.38 | 0.4 | 2.8 | 2.2 |
| TCGW 1.81.52 | TCGW 090208 | 3N | 5.56 | 2.38 | 0.8 | 2.8 | 2.2 |
| |
| TCGW 21.51 | TCGW 110204 | 3N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 |
| TCGW 21.52 | TCGW 110208 | 3N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 |
| |
| TCGW 221 | TCGW 110304 | 3N | 6.35 | 3.18 | 0.4 | 2.8 | 2.2 |
| TCGW 222 | TCGW 110308 | 3N | 6.35 | 3.18 | 0.8 | 2.8 | 2.2 |
